SUMMARY

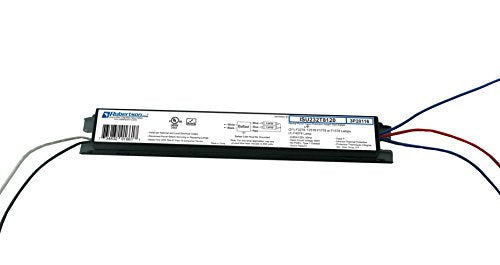

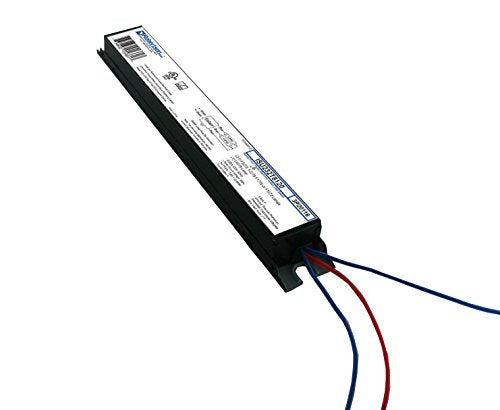

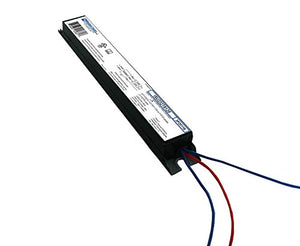

Upgrade your fluorescent lighting with the Robertson 3P20116 eBallast. Designed for instant starts, this NPF ballast can accommodate 1 or 2 F32T8 lamps. With a 120Vac, 60 Hz input, this model is a great replacement for the Robertson 3P20003. Enjoy energy efficiency without sacrificing performance!

Features

• Equivalent to: REL-2P32SC, REB2P32SC; Howard E2/32IS/120SC; Sola E-758-F-232-SC
• Equivalent to: GE-232-120-N; B232I120RH-A, B232I120RESA, VE232120MIP
• Equivalent to: QT2X32T8120ISNSC; Keystone KTEB-232LBF-1-TP-PIC-EV; Espen VE232120HIP
• Take advantage of Robertson's 60 years of electronic design and quality manufacturing experience.

The Robertson 3P20116 eBallast is an electronic ballast designed for instant start operation with fluorescent lamps. Here are the key specifications and features:

1. Compatibility: This eBallast is compatible with F32T8 fluorescent lamps. It can operate one or two lamps simultaneously.

2. Instant Start Operation: The ballast utilizes instant start technology, which provides quick and efficient lamp ignition without the need for preheating. Instant start ballasts are known for their energy efficiency and long lamp life.

3. NPF (Normal Power Factor): The ballast operates with a normal power factor, which means it efficiently utilizes the electrical power supplied to it without drawing excessive current or causing power factor issues in the electrical system.

4. Voltage and Frequency: The ballast is designed to operate with a voltage input of 120V AC at a frequency of 60 Hz. This voltage and frequency are standard for residential and commercial electrical systems in many regions.

5. Model Information: The model number of this eBallast is ISU232T8120 BA. It is a replacement for the Robertson 3P20003 model (ISU232T8120 /B).

6. Electronic Design: Being an electronic ballast, it incorporates advanced electronic components and circuitry to regulate the flow of current through the fluorescent lamps. Electronic ballasts are known for their energy efficiency, lightweight design, and silent operation compared to traditional magnetic ballasts.

7. Compact Size: The eBallast is designed to be compact and lightweight, making it easy to install in various lighting fixtures or enclosures.

Overall, the Robertson 3P20116 eBallast is a reliable and efficient electronic ballast suitable for powering F32T8 fluorescent lamps in various indoor lighting applications. Its instant start operation, compatibility with one or two lamps, and normal power factor make it a versatile choice for residential, commercial, or industrial lighting installations.

MORE INFO

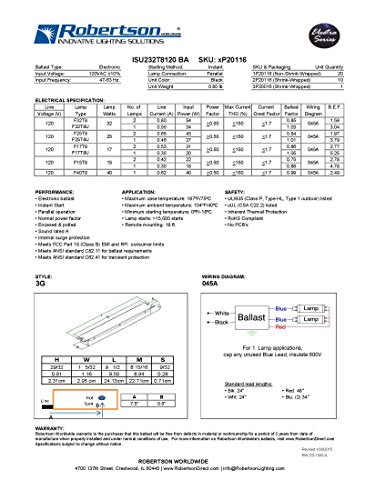

Robertson 3P20116, Model ISU232T8120 Fluorescent Electronic Linear T8 Instant Start Ballast for 2 or 1 F32T8 lamps operation. Ballast also accepts 2/1 F32T8U, F28T8U, F25T8, F25T8U, F17T8 and F17T8U or 1 F40T8 lamps. Low profile housing and lightweight. High performance ballast for all general fluorescent applications. Dimensions 9.50 L x 1.16 W x 0.91 H and 8.94 M. Parallel lamp operation keeps the unit maintenance easier to manage, if one lamp fails others will stay on. Unit is thermally protected and features an internal surge protection. Sound rating of Class A. Normal ballast factor. Normal power factor. Meets FCC Part 18 (Class B) EMI and RFI consumer limits. Meets ANSI standard C82.11 for ballast requirements. Meets ANSI standard C62.41 for transient protection. UL/935 (Class P, Typ3 HL, Type 1 Outdoor) listed. cull (CSA C22.2) listed. ROHS Compliant. Maximum case temperature 167F/75C, Maximum ambient temperature 104F/40C. Minimum starting temperature 0F/-18C. Industry standards for safety and performance.
